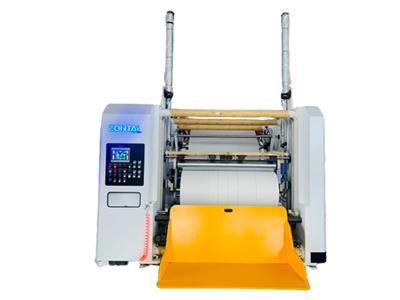

Máquina automática de corte y rebobinado de rollos de papel ZST-2000, Máquina cortadora rebobinadora
La máquina se utiliza principalmente para cortar tiras de papel jumbo, papel artesanal y otros tipos de papel, con un ancho de 1600 mm a 2700 mm.
Parámetro técnico principal:
|
Max Jumbo roll width |
1600mm |
2000mm |
2500mm |
|
Min Jumbo roll width |
400mm |
400mm |
400mm |
|
Diameter of roll |
Ø1500mm |
Ø1500mm |
Ø1500mm |
|
Diameter of rewinding |
Ø1200mm |
Ø1200mm |
Ø1200mm |
|
Unwind dia of paper core |
3’’ and 6’’ |
3’’ and 6’’ |
3’’ and 6’’ |
|
Rewind dia of paper core |
3’’ |
3’’ |
3’’ |
|
Width of rollers |
1650mm |
2050mm |
2550mm |
|
Slitting speed |
10-350m/min(according to material) |
10-350m/min(according to material) |
10-350m/min(according to material) |
|
Tolerance of EPC |
≤0.1mm |
≤0.1mm |
≤0.1mm |
|
Range of EPC |
±75mm |
±75mm |
±75mm |
|
Min.width of produce |
50mm-1600mm |
50mm-2000mm |
50mm-2500mm |
|
Up circle knife dimension |
Ø125*70*50mm |
Ø125*70*50mm |
Ø125*70*50mm |
|
Down circle knife dimension |
Ø100*70*20mm |
Ø100*70*20mm |
Ø100*70*20mm |
|
Total power |
55KW |
60KW |
70KW |
|
Weight |
16000Kg |
17000Kg |
18000Kg |
|
overall dimension (L X W X H) |
7900mmx3100mmx2200mm |
7900mmx3500mmx2550mm |
7900mmx4000mmx2550mm |
