This machine is suitable for slitting and rewinding such various roll materials, PVC, PET, BOPP, PE film, can cut edge, separate and cut material according to different requirements during production.
Description:

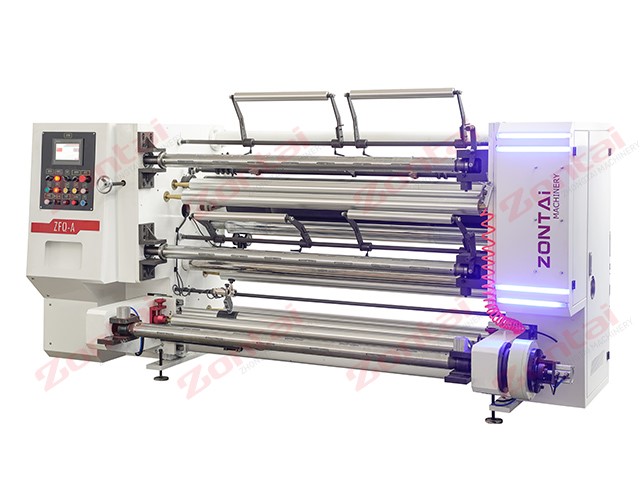

ZFQ-A1000/1300/1600 Vertical slitting rewinding machine
1. This machine is a kind of vertical slitting & rewinding machine.
2. Miscrosoft computer for operation, more easier and convenient, the controller part is connected to machine body, take less space.
3. Automatic EPC with photocell for unwinding, photocell is suitable for tracking the edge and printing mark of material.
4. Air shafts (3inch) for unwinding and rewinding, magnetic powder brake and clutches for tension control.
5. Main motor with frequency converter for speed regulation.
6. Equipped with rim charge conveying device.
7. Automatic meter counting device
8. Razor knifes for slitting.
|
Type |
ZFQ-A1000 |
ZFQ-A1300 |
|
Max.Width of Mother Roll |
1000mm |
1300mm |
|
Max.Diameter of Mother Roll |
Φ600mm |
Φ600mm |
|
Max. Diameter of rewind |
450mm |
450mm |
|
Width of Final Roll |
30-1000mm |
30-1000mm |
|
Slitting and Rewinging Speed |
5-160m/min |
5-160m/min |
|
Tolerance of EPC |
<±0.5mm |
<±0.5mm |
|
Total Power |
3.7kw |
3.7kw |
|
Weight of Machine |
1200kg |
1200kg |
|
Overall Dimension |
2700x1510x1600mm |
2700x1510x1600mm |
