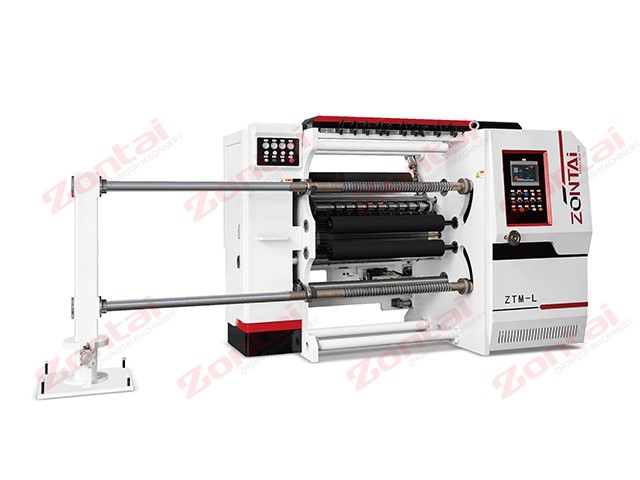

ZTM-L Aluminum Foil Slitter Rewinder Machine

The machine applies to slit pure aluminum foil 6mircons-20mircons, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, release film, film roll, foil roll, all kinds of paper rolls, film and printing of various materials.,etc, thickness 12-200mircons.

Contact us

Mobile+86-13616602974

Whatsapp8613616602974

Wechat+86-13616602974

E-mailzhongtai@cnslittingmachine.com

The machine applies to slit pure aluminum foil 6mircons-20mircons, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, release film, film roll, foil roll, all kinds of paper rolls, film and printing of various materials.,etc, thickness 12-200mircons.



Features:

1. Unwinder adopts shaft-less type auto loader, Japanese SMC hydraulic cylinder automatic lift up, uses hydraulic loading system.

2. Unwinder tension ’s actuator is 1 set servo motor and driver, through PLC and load cell to achieve a close loop tension.

3. Rewinder use both pneumatic friction shafts and air shafts 3inch

4. Slitting system use both circular knives and razor knives.

5. Rewinders uses 2 motors control each shaft

6. Use good imported brand LPC webguide and PLC system

7. Speed max. 500m/min

8. Mostly suitable for pure aluminum foil, thickness 6mircons and up.


Main technical parameter:

Model

ZTM-L 1000

ZTM-L 1300

Jumbo roll width

1000mm

1300mm

Diameter of roll

Ø1000mm

Ø1000mm

Diameter of rewinding

Ø800mm

Ø800mm

Inner diameter of paper core

3’’or 76mm(optional:6’’or 152mm)

3’’or 76mm(optional:6’’or 152mm)

Slitting speed

10-500m/min

10-500m/min

Tolerance of EPC

≤0.1mm

≤0.1mm

Min.width of produce

50mm

50mm

Total power

25KW

28KW

Weight

4500Kg

5000Kg

overall dimension (L X W X H)

2300mm x 3800mm x 1950mm

2300mm x4100mm x 1950mm
