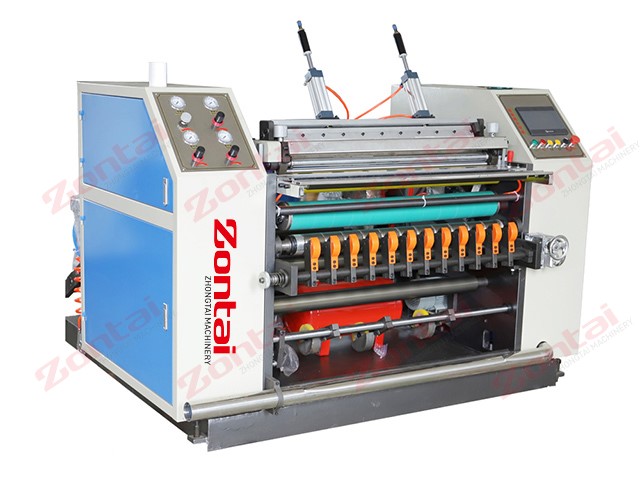

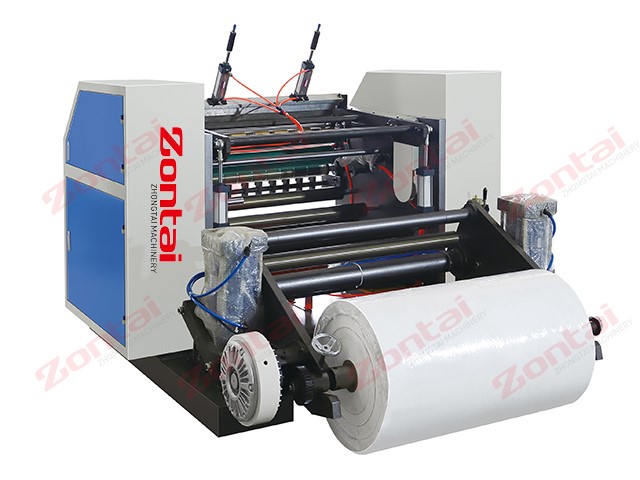

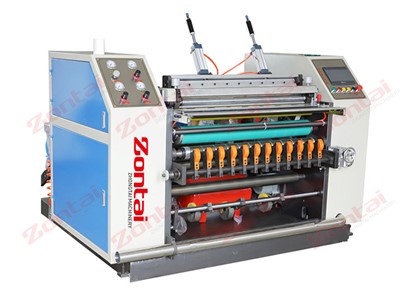

ZTM-900 Automatic Thermal Paper Slitting and Rewinding Machine

Quotation：

Ø FOB Ningbo 14,500usd/set

Ø Optional: 2,000usd forWeb guide, FOR PRINTING PAPER

Ø Payment: 100% T/T. 30% in advance,70% before shipping.

Ø Our quotation includes one year guarantee time, whole life technician support, a box of vulnerable parts, a set of tools and exporting standard wooden case.

Ø If customer need, our technician must go to teach how to run machine, Thecost(go-back ticket, hotel, meal, VISA) should be paid by customer.

Application Material：

Ø Slitting thermal paper,bond paper, Cash register paper,Fax Paper,POS paper,ATM paper, and other small ribbon roll .

Main Configurations：

Ø Equipped with Panasonic PLC andWeinviewtouch screen, all the parameter are displayed on the monitor. You only need to setup the material roll diameter and thickness, the PLC will give a proper parameters for machine running automatically.

Ø Equipped with Auto Tension Control System for unwinding tension.

Ø With meter counter. Got to the setup data, the machine stops and alarms.

Ø It adopts Synchronic Belt to avoid the over lap problem.

Ø Itadopts frequency inverter for main invertermotor driving, the speed can be displayed on the operation panel. Frequency inverter motor: 2.2Kw.

Ø All transmission rollers have been dynamic/static balance treated.

Ø Equipped with emergency switch.

Ø All the electric appliances has been gained theCE certificate.

Ø 3” air expanding shaft.

Ø Equipped withautomaticpneumatic lift-up loading system for heavy material roll loading.

Ø Equipped witstrong0Kg/ m2 automatic braking device x 1 to material feeding tension control.

Ø Equipped withautomatic tension controller(diameter-calculating type) togain a constant tension.

Ø The unwind core size, and initial unwind diameter only needs to be preset on the touch screen, the PLC controls it automatically. Easy Operation.

Ø It adopts Auto Tucker to tuck in the paper to cores automatically. No need paste in the tape. Easy operating and process the efficiency.

Red Line：

Ø Set up the red line length in the touch screen. For example, 1-2 meter, when the rewinding meter reach 1 meter,it will be in the red line automatically.Also as customer requirement.

Rewinding Section：

Ø 0.5” rewinding shafts are all available in this machine, we can also supply as request.

Trimmed Waste Edge：

Ø Waste edge trim device is included in the slitting device. Each side of edge is used for trimming the waste edge.

Ø Equipped withair blow for waste material edge trimmer
