The machine applies to slit and rewind cellophane, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, film roll, foil roll, laminated film, all kinds of paper rolls, film and printing of various materials.,etc.
Features:
1, Max. working speed 600m/min;
2, Germany brand servo motors control；
3, Auto close-loop tension system for unwinder；
4, Automatic air pressure system for rewinder；
5, Good import brands of electric parts for webguide, motor, PLC, Valves etc；
6. Unwinder hydraulic loading shaftless type；
7, Rewinder uses pneumatic friction shafts.
Technical Parameters:
|
Model |
ZTM-C1300 |
ZTM-C1600mm |
|
Jumbo roll width |
1300mm |
1600mm |
|
Diameter of roll |
Ø1000mm |
Ø1000mm |
|
Diameter of rewinding |
Ø600mm |
Ø600mm |
|
Inner diameter of paper core |
3'(optional:6'') |
3'(optional:6'') |
|
Slitting speed |
10-600m/min |
10-600m/min |
|
Tolerance of EPC |
≤0.1mm |
≤0.1mm |
|
Min.width of produce |
50mm |
50mm |
|
Total power |
22KW |
30KW |
|
Weight |
5500Kg |
6500Kg |
|
overall dimension (L X W X H) |
2400mm x 4500mm x 1840mm |
2400mm x 4800mm x 1840mm |
Hydraulic cylinder automatic lift up

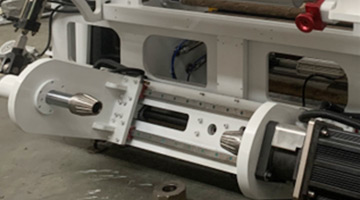

Shaftless loading

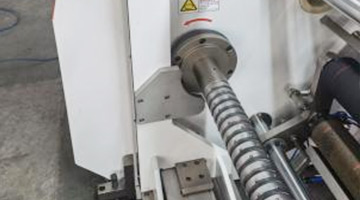

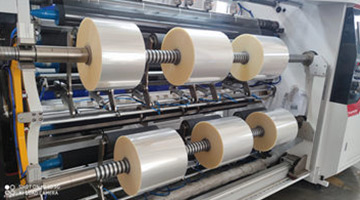

Slip shaft for rewinder

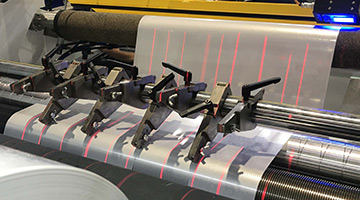

Razor knife for slit film
Laser lamp for paper core position
Rewind automatic pushing device

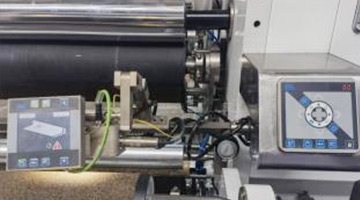

Germany E+L LPC

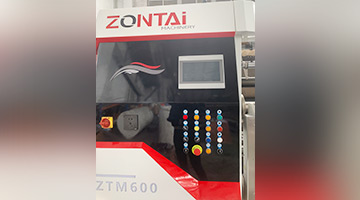

PLC system operation Panel

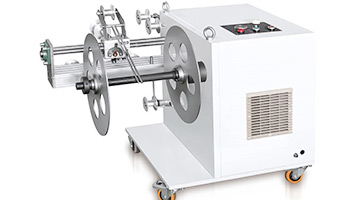

Optional：Edge trimming rewinder machine

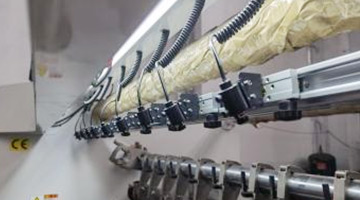

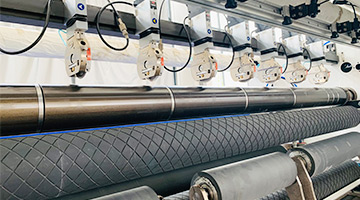

Optional: Taxcess brand Pneumatic circle knife

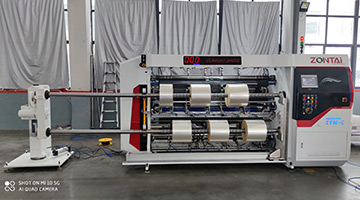

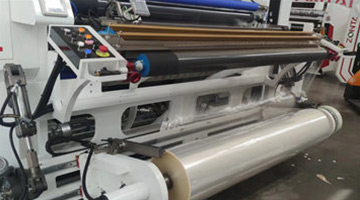

Whole machine picture

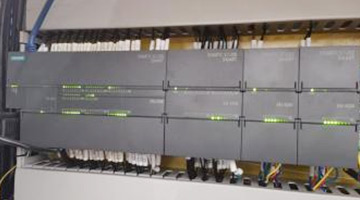

Siemens PCL
