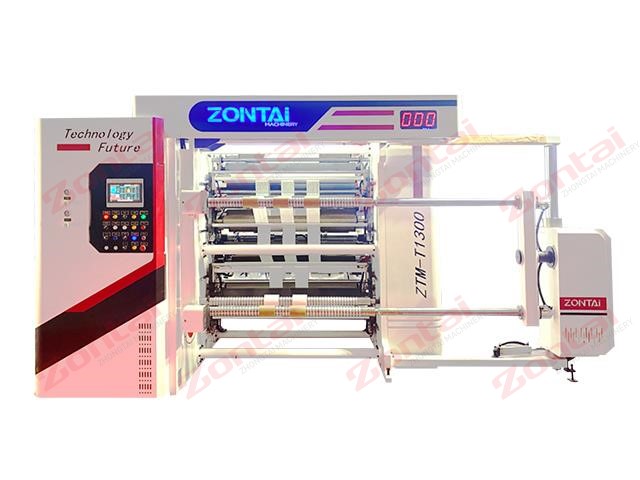

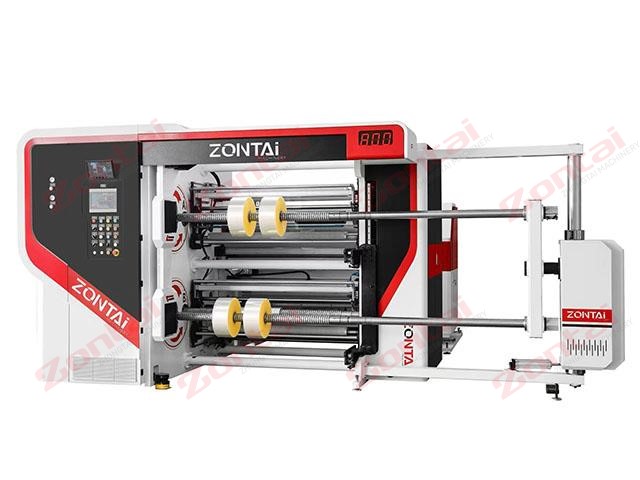

ZTM-T Series Automatic Double Turret High Speed Slitting Machine is leading model among domestic slitting machines; especially suits for high-end customers, functions are listed below:
1.Pneumatic cylinder automatically adjust unwinding width
2. Automatically loading by hydraulic system
3. 3 inch and 6 inch shaft-less unwinding
4. Air splicing table
5. Servo drive system
6. Closed-loop tension control for unwinder
7. Intelligent Laser tube core positioning
8. Automatic razor knife adjusting system (Optional device)
9. Four sets rewinding pneumatic friction shafts automatically changeover system
10. Automatically cutting rewinding roll system
11. Rewinding press roller automatically control system
12. Finished roll automatically unloading system
13. Rewinding shafts protection system while reel changing
Main parameters:
|
Unwind width range |
Max1300mm |
|
Unwind Paper core diameter |
3” 6” |
|
Unwind Max diameter |
φ1200mm |
|
Rewind Max diameter |
φ600mm |
|
Mechanical speed |
500m/min |
|
Rewind Paper tube diameter |
3” |
|
Rewind accuracy |
±0.3mm |
|
Rewind motor power |
5.5KW*4 Sets |
|
Unwind power |
7.5KW |
|
Traction motor power |
5.5KW |
|
Air blowing motor power |
2.2KW |
|
Tension control |
PLC(Mitsubishi Japan) |
|
Tension setup range |
3-20kg |
|
Material thickness range |
12um-150um |
|
Web guide control |
E+L Germany |
 |
 |
 |
|

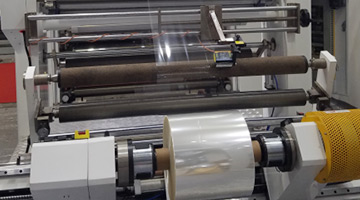

Shaftless Autotmatic Loading |

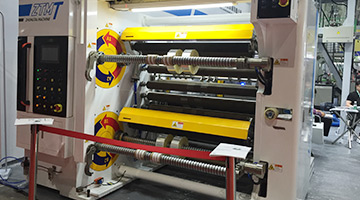

Web guiding control system |
Servo drive system |
 |
 |
 |
|

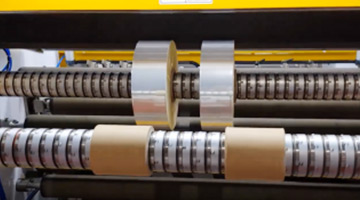

Four sets rewinding pneumatic friction shafts automatically change over system |

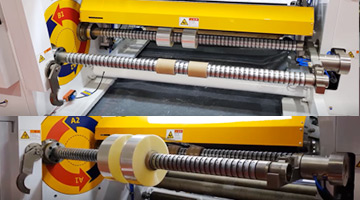

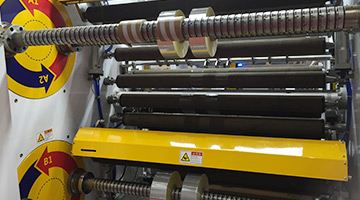

Automatic cutting and dual turret rewinding |
Automatic paste and roller change |
 |
 |
 |

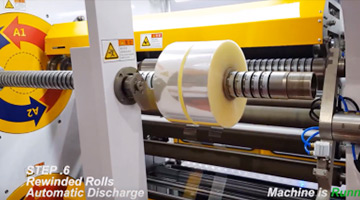

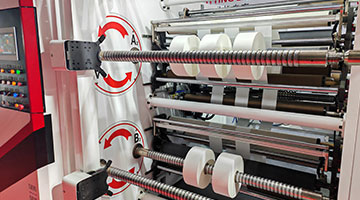

| Automatic pushing and discharge |

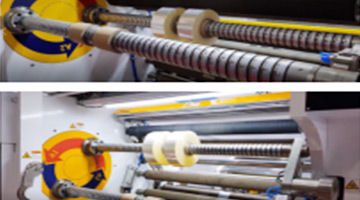

Slip shaft for rewinder |

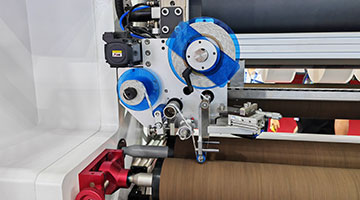

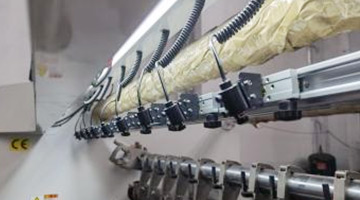

Intelligent Laser tube core positioning |
 |
 |
 |
|

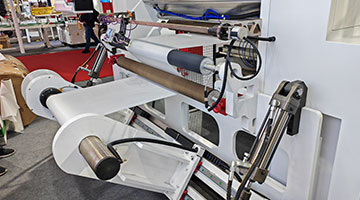

Discharging independent device |

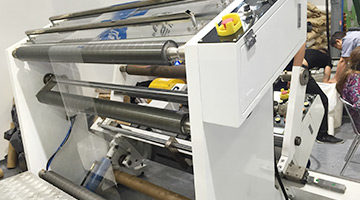

Film cutting and connection table |

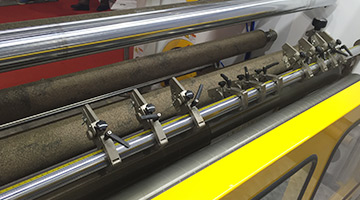

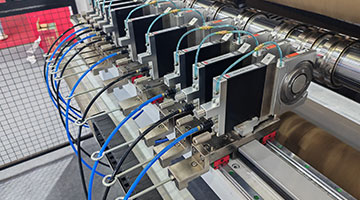

Razor slitting knife |
