Description：

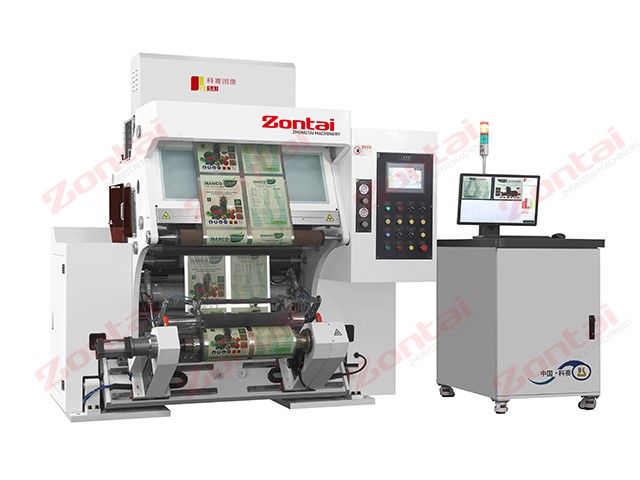

This Inspecting rewinding machine is used for automatically inspect the printing defect of various roll materials as BOPP,PET,CPP, PVC, aluminum foil and paper.,etc. and rewinding it.
1. This machine's equipped with 3pcs of Synchronous servo motors and drivers Yaskawa Japan.
2. The rolls can go forward and backward.
3. Its equiped with loadcell automatic tension system to make sure constant tension during working;
4. 2pcs of Slitting knives are installed for trimming the edge of film.
5. The Automatic inspecting system we use is China Sotry; or you can choose E+L, AVT or other brands etc.
Main technical parameter:
|
Jumbo roll width |
650mm/800mm/1000mm/1300mm |
|
Diameter of roll |
Ø800mm |
|
Diameter of rewinding |
Ø800mm |
|
Inner dia.of paper core |
3'' and 6'' |
|
Rewinding speed |
10-300m/min |
|
Tolerance of EPC |
≤0.1mm |
|
Total power |
12KW |
|
Weight |
4500Kg |
|
overall dimension (L x W x H) |
2300mmx2600mmx2200mm |
