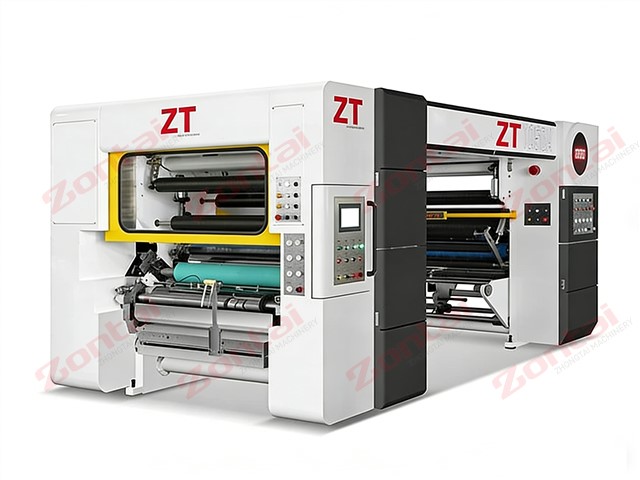

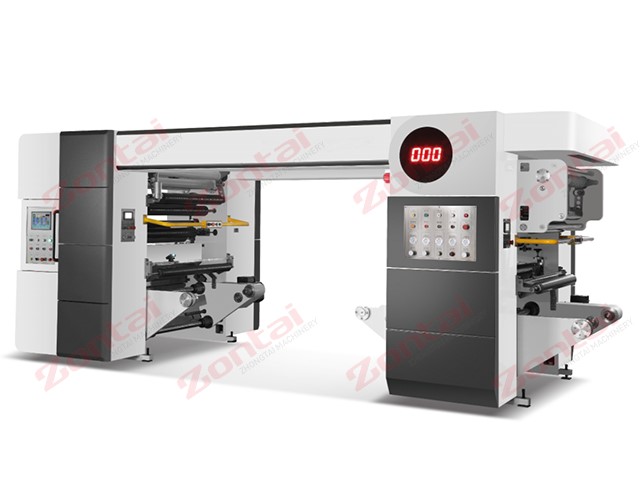

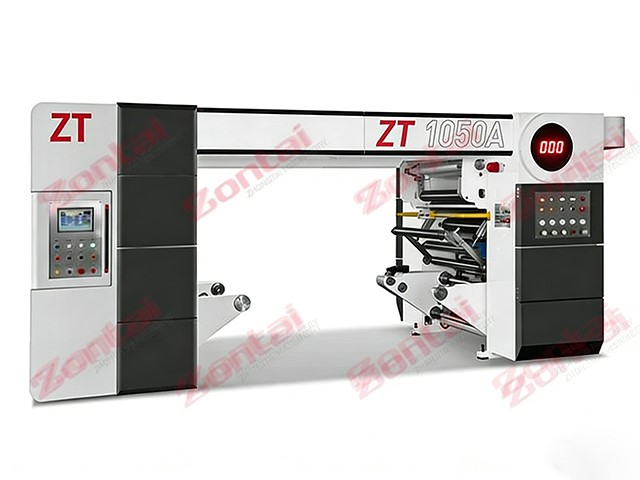

The Advantages of our solventless laminating machine:
1. Tension control system:uses dancing roller systems with Japanese Fujikura low friction pneumatic cylinder control.
2. Coating part gap system: The gap between scraper roller and metering roller check the initial coating amount, it is adjusted byJapan brand ball reducer and the adjust precision is ±0.001 mm (1 micron), operators don't need to readjust the gap after cleaning as the pointer will automatically get back to the original gap. Its much more convenient and save time for operators.
3. Coating part, metering roller and transfer rubber roller, each use 1 servomotor+ servo driver controlled. Its more accuracy in coating amount control;
4. Machine structure, we use 80mm thickness solid steel, machine weight 14-15tons, strong machine body to make sure more stable high speed working.
5.Unwinders and rewinder are all use shaftless type auto Loader, with 3 and 6 inch core adaptors.
Optional devices:
1. Mono component glue machine
2. Corona treater device
3. Siemens Servo motor system /Allen-Brad ley USA electric system for optional.
Main parameters:
|
Printing Material’s way |
Left to right |
|
Mechanical Speed |
580m/min |
|
Max Laminating Speed |
500m/min |
|
(The maximum production speed will be affected by the quality and properties of the substrate and binder used) |
|
|
Max coating width |
1050mm/1350mm |
|
Max roll width |
1050mm/1350mm |
|
Min roll width |
400mm |
|
Unwind paper core |
3’’=76mm and 6’’=152mm |
|
Rewind paper core |
3’’=76mm and 6’’=152mm |
|
Unwind tension range |
3--40kg(400N) |
|
Rewind tension range |
4--55kg(550N) |
|
Rewind tape tension setting range |
100%--60% |
|
Max roll weight |
1,000kg |
|
Coating range |
0.8-3g/㎡ |
|
Dimension |
5100x3600x2500MM |
|
Power |
53KW |
|
Weight |
14000KG/16000kgs |
|
Machine color |
Ivory white |
