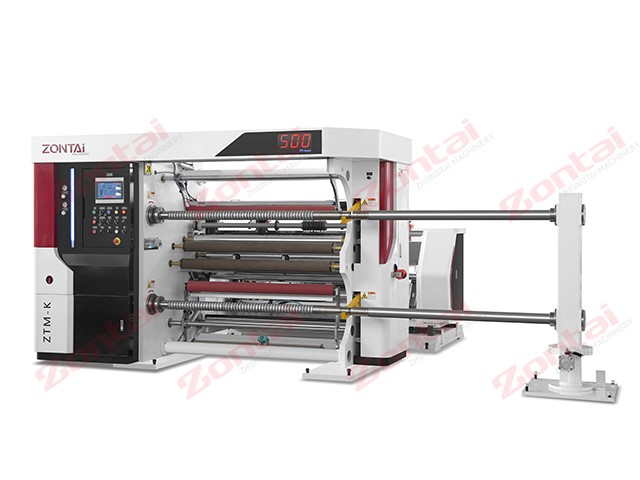

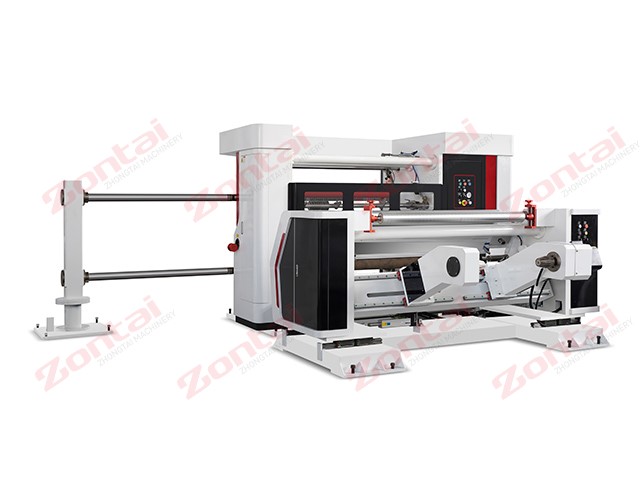

ZTM-K1300/1600 Servo Drive Slitter Rewinder Machine

This machine applies to slit cellophane, PET, OPP, CPP, PS, PVC, PE, optical material, film rolls, paper rolls of printing of various materials, from 10-500micron thickness.

Contact us

Mobile+86-13616602974

Whatsapp8613616602974

Wechat+86-13616602974

E-mailzhongtai@cnslittingmachine.com

This machine applies to slit cellophane, PET, OPP, CPP, PS, PVC, PE, optical material, film rolls, paper rolls of printing of various materials, from 10-500micron thickness.

1) This machine is suitable for kinds of films and paper rolls industry. It's equipped with a high performace PLC micron-processor combined with movable colourful touch screen that operator is able to control both in rewinder position and unwinder position.

2) High-end surface treatment roller gives no scratch during slitting and rewinding on the optical or coated film.

3) Real time diameter checking technoligh attached on the rewinder unit. The ultrasonic sensor checking the exact diameter every 0.05seconds and it gives the PLC to calculating the most suitable tension while the rewinder diameter is changing.

4) Movable waste rewinder provides the waste film to rewind gently on the ground and it minimized dust occur for the clean room condition.

Main technical parameter:

Jumbo roll width

1300mm

1600mm

Diameter of roll

1200mm

1200mm

Diameter of rewinding

600mm

600mm

Inner dia.of paper core

76mm

76mm

Mechanical Slitting speed

10-500m/min

10-500m/min

Tolerance of EPC

0.1mm

0.1mm

Min.width of produce

50mm

50mm

Total power

15KW

18kKW

Weight

7500Kg

8000KGS

Overall dimension(L X W X H)

4.3mx4.5mx2.1m

4.3mx4.8mx2.1m

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
