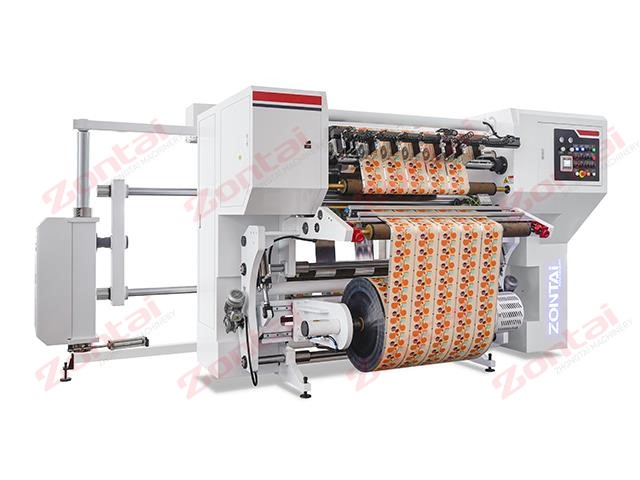

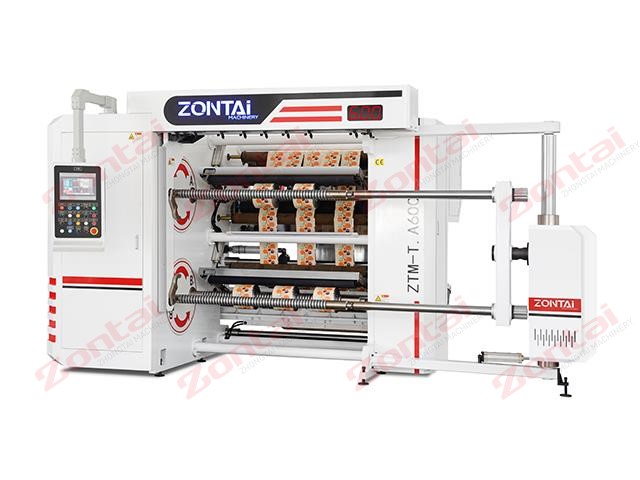

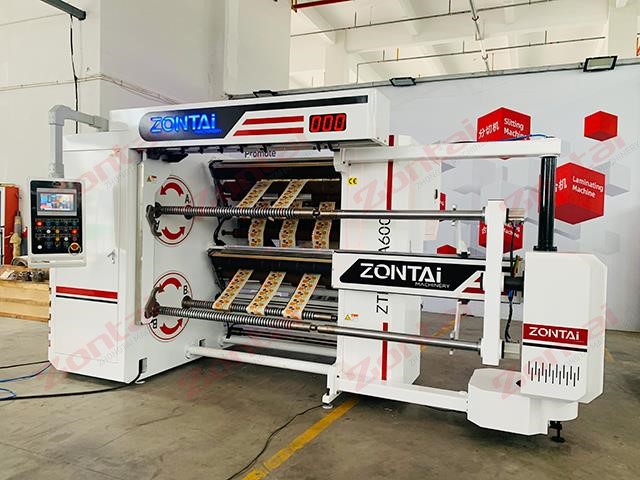

ZTM-T Series Automatic Turret High SpeedSlitting Machine isaleading model among domestic slitting machines; especially suits for high-end customers, functions are listed below:
● Motors with gear box control unwind arms left and right moving for fit different materials’ width.
● Automatically loading by hydraulic cylinder(Japanese brand YASKAWA).
● 3 inch and 6 inch shaft-lesschucks.
● Splicing table for unwind material change.
● Servomotor inverter system(Germany Bosch Rexroth brand)

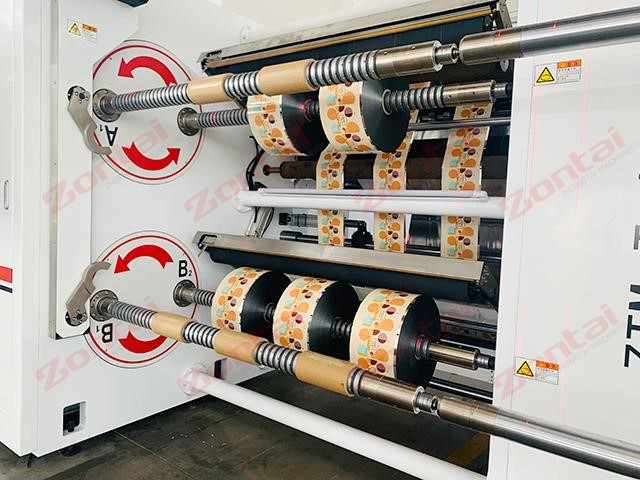

● Four sets rewindpneumatic friction-shafts automatically changeover system.
● Automatically cuttingrewind roll system.
● Rewindingpressroller automatically control system.
● Finished roll automaticallypushing system.
● Rewinding shafts protection system while reel changing.
● Automatic paper core moving system (optional).
● Automatic tape paste system (optional).
Main parameters:
|
Model |
ZTM-T1300 |
ZTM-T1600 |
|
Unwind width range |
Max1300mm |
Max1600mm |
|
Unwind Paper core diameter |
3” 6” |
3” 6” |
|
Unwind Max diameter |
φ1200mm |
φ1200mm |
|
Rewind Max diameter |
φ600mm |
φ600mm |
|
Mechanical speed |
600m/min |
600m/min |
|
Rewind Paper tube diameter |
3” , 6’’(can be optional) |
3” ,6’’(can be optional) |
|
RewindMinimal width |
50mm |
50mm |
|
Tension control |
PLC |
PLC |
|
Tension setup range |
3-20kg |
3-20kg |
|
Guiding accuracy |
±0.1mm |
±0.1mm |
|
Servo motor |
Germany brand |
Germany brand |
