Description:

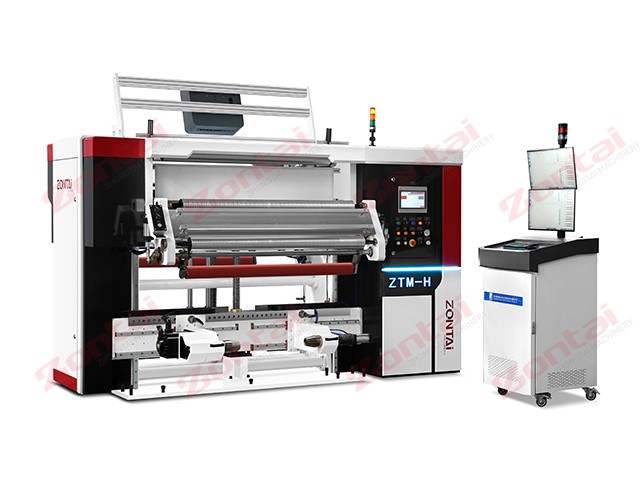

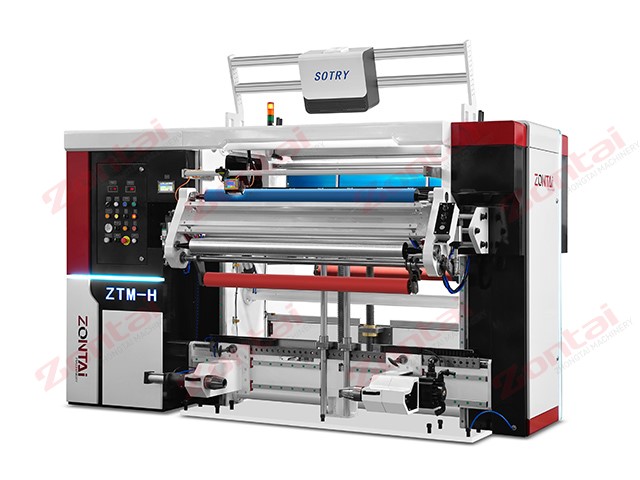

ZTM-H Series Automatic doctoring rewinding machine for printing film, max. working speed 400m/min; Web width 300-1300mm; unwinder diameter1000mm, rewinder diameter1000mm, unwinder and rewinder core 3 inch and 6inch.
1. It can forwarder and reverse operation;
2. Equipped with strobe light/ inpection light for manual checking,
3. And it can be worked with automatic inspection system, such as AVT, DAC, E+L, Sotry, Kesai, any brands of inspecting systems.
4. Unwinder and rewinder use shaftless type hydraulic system control.
5. Material’s up and down adopts separate motor and speed reducer, this type will make press roller always keep same angle in the material,
6. Tension will be more stable than normal type.
7. Joint table for connecting rolls in unwinder and rewinder sides.
8. Good brand LPC for correct the deviation.
Main technical parameter:
|
Momel |
ZTM-H |
|
Jumbo roll width |
1000-1300mm |
|
Diameter of roll |
Ø800mm-1000mm |
|
Diameter of rewinding |
Ø800mm-1000mm |
|
Inner dia.of paper core |
3'' and 6'' |
|
Rewinding speed |
10-400m/min |
|
Tolerance of EPC |
≤0.1mm |
|
Total power |
15KW |
|
Weight |
5000Kg |
|
Overall dimension (L x W x H) |
3200mmx2100mmx1950mm |
