1.The complete machine is equipped with imported PLC, and with a touch screen and man-machine interface in operation.
2. The unwinding transmission is governed by a frequency inverter vector adjusting vector motor, and PLC can automatically calculate the unwinding Diameter , which can achieve the unwinding tension controlling constantly.
Description：

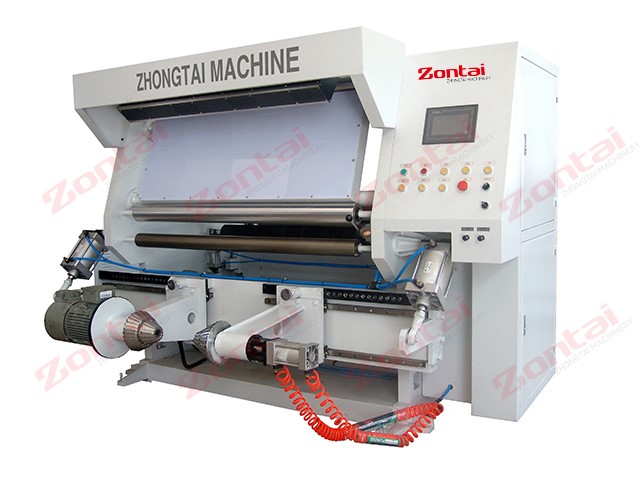

This machine is suitable to inspect and rewind BOPP, PET,CPP,PVC,AL- FOIL and paper with printing by strobe light and manually.
Main Features:
1.The complete machine is equipped with imported PLC, and with a touch screen for operation.
2. The unwinding transmission is governed by a frequency inverter vector adjusting vector motor, and PLC can automatically calculate the unwinding Diameter , which can achieve the unwinding tension controlling constantly.
3. The traction transmission adopts frequency vector inverter adjusting vector motor; achieving constantly controlling the linear speed.
4, It uses strobe light for checking the printing quality and manually for stop when find the defect.
Technical Parameter:
|
Width of Material: |
1300mm |
|
Diameter of Material: |
Diameter 800mm |
|
Diameter of Paper core: |
Diameter 76mm |
|
Verifying Speed: |
300m/min |
|
Width of Finished Products: |
30-1300mm |
|
Slitting Precision: |
0.5mm |
|
Weight: |
2500kg |
|
Total Power: |
15kw |
|
Overall Dimension(L*W*H)(mm): |
1735*2800*1800 |
